Primary Fluid Systems begin in 1991, as two people building systems for local applications. Since that time, we have left system-building to the pros, and focused on what we do best: manufacture and sell metering pump accessories for a variety of industries. Our innovative and patented designs ensure that we provide the best product for your specific application.

Top Valve:

Back Pressure Valves and Pressure Relief Valves


Standard Top Valve
  • Available in 7 sizes, ranging from 1/4" to 2" NPT or BSPT

  • 8 materials, including PVC, CPVC Corzan, Polypropylene, PVDF, PTFE, Stainless Steel, Alloy 20, and Hastelloy C276

  • CPVC Corzan molded top on most models

  • Back Pressure (anti-syphon) valve is a two-port flow through device, factory set at 50 PSIG (field adjustable 15-150 PSIG)

  • Pressure Relief valve is a three-port flow through design, factory set at 50 PSIG (field adjustable 15-150 PSIG)

  • Pressure Relief valve is also available in a two-port, off-line style (model P2)

  • Standard diaphragm material is PTFE laminated and EPDM backed (3-year warranty); optional materials available

  • Locking pressure adjustable handle is standard on all valves

  • Gauge port option available

  • CRN certification available on a variety of valves. Please contact us for price and availability.

Flanged
  • Available in Thermoplastic and Metallic

  • Our Flanged Top Valves in Plastic incorporate 150# socket-welded flanges on PVC and CPVC valves, and threaded 150# companion flanges on polypropylene, PVDF, and PTFE valves.

  • Flanges sizes from 1/4" to 2" available.

  • Our Flanged Top Valves in Metal incorporate 150# socket-welded flanges on fully metal or metal body-only valves.

  • These flanged valves are also available in our High Temperature and High Pressure series.

Mid-Range
  • Completely adjustable pressure range to 350 PSIG

  • Built-in air release to reduce priming difficulties

  • Available in sizes 1/4" through 2"

  • 8 different materials of construction

  • Four different connection styles

  • Competitive 3-year warranty

  • Top Valve now certified to NSF/ANSI-61

  • Our Mid-Range valve line offers higher pressure rated thermoplastic valves in PVC, CPVC Corzan, and PVDF.

  • They are rated to 232 PSIG / 16 BAR.

High Pressure

Our High Pressure series is available only with metallic bodies. Its features include:

  • Pressure range from 50 to 350 psig

  • This series includes a standard aluminum metallic top, viton diaphragm, and high pressure spring, with three standard choices of metallic wetted bottom

  • Standard body materials available are 316L stainless steel, Alloy 20, or Hastelloy C. Other metallic bodies are available upon request.

  • Three styles available: BH Back Pressure 2-port design, PH Pressure Relief 3-port in-line design, or P2H Pressure Relief off-line design.

  • Valves available in various configurations that include threaded, socket, and flanged

High Temperature

Our High Temperature series is designed for applications above 140°F / 60°C. Its features include:

  • Temperature limit of this valve is dependent upon body material selection, to a maximum of 300°F (149°C)

  • Standard body materials available are 316L stainless steel, Alloy 20, or Hastelloy C, all rated to the maximum temperature. Other metallic bodies available upon request.

  • Option body materials available are CPVC Corzan and PVDF, however these have limited pressure versus temperature ratings, and the factorys hould be consulted to ensure proper selection

  • Valves available in various configurations that include threaded, socket, and flanged

Accu-Draw:

       Calibration Cylinders


PVC Cylinder

Standard features include:

  • Translucent

  • Available in PVC, PP, and Glass

  • Four styles available

  • 100mL to 20,000mL sizes

  • Chemical Resistant

  • Break Resistant

  • Threaded, Socket, or Flanged Connections

  • Coloured Graduations

  • Custom Designs Available

  • PVC and Glass Calibration Cylinders certified to NSF/ANSI-61

  • Available in sizes ranging from 100mL to 20,000mL

  • Available in four styles:

    1. Bottom Threaded Connection Only

    2. Top and Bottom Threaded Connections

    3. Bottom Threaded Connection with removable vented dust cap

    4. Top and Bottom Threaded Connection with removable O'Ring sealed top, and a float ring level-indicator.

  • Standard connection is NPT threaded, but we also offer a socket-weld connection, BSPT threads, or flanges.

  • Dual Graduation Scale in both milliliters (mL) and gallons-per-hour (GPH).

Polypropylene Cylinder

Standard features include:

  • Translucent

  • Available in PVC, PP, and Glass

  • Four styles available

  • 100mL to 20,000mL sizes

  • Chemical Resistant

  • Break Resistant

  • Threaded, Socket, or Flanged Connections

  • Coloured Graduations

  • Custom Designs Available

  • PVC and Glass Calibration Cylinders certified to NSF/ANSI-61

  • Available in sizes ranging from 100mL to 4,000mL

  • Available in four styles:

    1. Bottom Threaded Connection Only

    2. Top and Bottom Threaded Connections

    3. Bottom Threaded Connection with removable vented dust cap

    4. Top and Bottom Threaded Connection with removable O'Ring sealed top, and a float ring level-indicator

  • Standard connection is NPT threaded, but we also offer a socket-weld connection, BSPT threads, or flanges

  • Graduation Scale in milliliters (mL) only

Glass Cylinder

Standard features include:

  • Translucent

  • Available in PVC, PP, and Glass

  • Four styles available

  • 100mL to 20,000mL sizes

  • Chemical Resistant

  • Break Resistant

  • Threaded, Socket, or Flanged Connections

  • Coloured Graduations

  • Custom Designs Available

  • PVC and Glass Calibration Cylinders certified to NSF/ANSI-61

  • Available in sizes ranging from 100mL to 20,000mL

  • Available in one style: Top and Bottom Threaded Connection

  • Construction materials available include TFE, PVDF, CPVC, and 316 S/S

  • Sealing O'rings are Viton and Buna-N

  • Highly translucent polycarbonate shield acts as a temporary secondary containment area due to its seal

  • Standard connection is NPT threaded, but we also offer a BSPT threaded or flanged

  • Graduation Scale in milliliters (mL) only

  • Custom designs available to your specifications

Laboratory Cylinder

Standard features include:

  • Translucent

  • Available in PVC, PP, and Glass

  • Four styles available

  • 100mL to 20,000mL sizes

  • Chemical Resistant

  • Break Resistant

  • Threaded, Socket, or Flanged Connections

  • Coloured Graduations

  • Custom Designs Available

  • PVC and Glass Calibration Cylinders certified to NSF/ANSI-61

  • Easy-to-read blue printed graduations

  • Superior high-clarity polypropylene material

  • Clear solutions show virtually no meniscus

  • Large, non-drip pouring spout, with removeable base for easy storage and washing

  • Shatter resistant, which minimizes potential for injury

  • Chemically-resistant to most acids, bases, and many commonly used solvents

  • High temperature resistance to 250°F (121°C): suitable for clinical lab environments where frequent sterilization is required

  • Meets all requirements of CFR 21 (FDA), section 177.1520

  • Meets ISO 6706 Standard



PFS Injection Quills:

     Male x Male and Female x Male          Connections

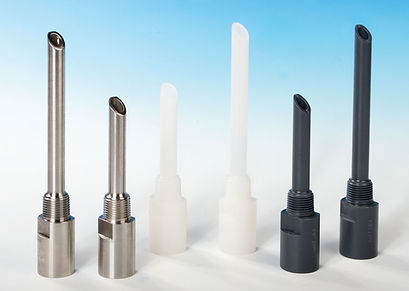

Male x Male Injection Quills

Standard features:

  • Available in 6 materials of construction, including PVC, CPVC, PP, PVDF, 316 S/S, and Hastelloy C276

  • Two standard sizes of 6" or 8"

  • Threaded or socket connections available

  • Built-in spring-loaded check valve

  • Standard 1/8" discharge orifice, and optional 1/4" discharge orifice for higher flow

  • Pressure range to 3000 psig

  • Temperature range up to 260℃ (500℉)

Female x Male Injection Quills

Standard features:

  • Available in 6 materials of construction, including PVC, CPVC, PP, PVDF, 316 S/S, and Hastelloy C276

  • Two standard sizes available: 3" or 5" insertion length

  • NPT or BSPT connections available

  • Built-in spring-loaded check valve

  • Standard 1/4" discharge orifice for higher flow

  • Pressure range to 3000 psig

  • Temperature range up to 260℃ (500℉)

  • Field Repairable

PFS Corporation Stop


Corporation Stop

Standard features include:

  • Isolation valve allows for ease of maintenance

  • Available in 6 materials of construction

  • Wetted components have comparable or greater chemical resistance than quill construction material

  • Standard and custom lengths available

  • Connections available in NPT, Metric, or Flanged

  • Certain corporation stops are CRN certified. Please contact factory for price and availability.

Further Details:

  • Standard insertion lengths available are 2 5⁄8 inches and 4 5⁄8 inches

  • Custom insertion lengths available upon request

  • Available in PVC, CPVC, PP, PVDF, 316 S/S, and Hastelloy C276. Other materials available upon request

  • Maximum temperature (metallic options) of 176℃ (350℉)

  • Maximum pressure (metallic options) of 2000 psig

  • Standard 1/8" discharge orifice for high velocity discharge. Optional 1/4" discharge orifice available for higher capacity flow

Retractable Corporation Stop

Standard features include:

  • Isolation valve allows for ease of maintenance

  • Available in 6 materials of construction

  • Wetted components have comparable or greater chemical resistance than quill construction material

  • Standard and custom lengths available

  • Connections available in NPT, Metric, or Flanged

  • Certain corporation stops are CRN certified. Please contact factory for price and availability.

Further Details:

  • Allows installation and retrieval of the quill under full operating pressure up to 1000 psig

  • Titanium Gr. 5 retractable rod for compact design

  • 3 materials of construction for greater durability: 316 S/S, Alloy 20, and Hastelloy

  • Connection in NPT, metric or flanged

  • Extensive variety of designs, materials, and size configurations to best suit your application

  • Retrofit kit is available for standard PFS Corporation Stops

Accu-Pulse Pulsation Dampeners


Accu-Pulse

Benefits of a Pulsation Dampener:

·         Increase system efficiency and pump life

·         Decrease maintenance and costs

·         Protect pipes, meters, valves, and instrumentation from pulsation and vibration

·         Ensure meter accuracy, longevity, and repeatability

·         Reduce pressure fluctuations and diaphragm wear

·         Prevent foaming and splashing

·         CRN is now available on certain Accu-Pulse dampeners. Please contact factory for

          price and availability.

Available features:

·         Lightweight and compact design

·         Sizes available between 4 cubic inch and 1155 cubic inch capacity

·         Standard models pressure rated to 150 and 300 PSIG

·         3/8", 3/4" and 1" pipe connections for the 10 & 85 Cubic Inch models

·         Available in 8 materials of construction, including PP, PVC, CPVC, PVDF, 316 S/S, Alloy

          20, Carbon Steel, and Hastelloy C

·         Bellows material available in 8 materials, including Neoprene, Buna-N, Hypalon,

          EPDM, Viton, Teflon, Santoprene, and Polyvinylchloride

·         2 year warranty

High Pressure Accu-Pulse APX

Benefits of a Pulsation Dampener:

  • Increase system efficiency and pump life

  • Decrease maintenance and costs

  • Protect pipes, meters, valves, and instrumentation from pulsation and vibration

  • Ensure meter accuracy, logevity, and repeatability

  • Reduce pressure fluctuations and diaphragm wear

  • Prevent foaming and splashing

  • CRN is now availabile on certain Accu-Pulse dampeners. Please contact factory for price and availability.

Standard features:

  • Rugged 316L S/S Shell casing

  • Standard elastomers are nitrile (Buna-N), EPDM, and FPM (Viton); other elastomers available

  • Available in 4 to 1,098 cubic inch models (0.075L to 18L)

  • Pressure range to a maximum of 2900 psi (200 BAR), dependent on model

  • Larger capacities and higher pressures available upon request

Accu-Vent :

Automatic Degassing Valve


Standard Accu-Vent

Standard features include:

  • CPVC (Corzan) or 316 Stainless Steel corrosion-resistant wetted materials of construction

  • Specially designed float material automatically vents built-up gases on system start-up and under working pressure

  • Can be used on feed or discharge side of pump (or both)

  • Standard CPVC 1/2" or 3/4" NPT threaded connections, or optional socketweld

  • NEW! Stainless Steel Accu-Vent with 1/2", 3/4", or 1" connections, for chemical, temperature, and pressure applications

  • NEW! Compact Accu-Vent with 1/4" connection

  • Accu-Vent now certified to NSF/ANSI-61

Standard features:

  • Standard CPVC 1/2" or 3/4" NPT threaded connections, or optional socketweld

  • CPVC Corzan corrosion-resistant materials of construction

  • Specially designed float material that automatically vents built up gases on system start-up or under working pressure

  • Maximum temperature of 82℃ (180℉)

  • Maximum pressure of 150 psig

Special Application Accu-Vent

Standard features include:

  • CPVC (Corzan) or 316 Stainless Steel corrosion-resistant wetted materials of construction

  • Specially designed float material automatically vents built-up gases on system start-up and under working pressure

  • Can be used on feed or discharge side of pump (or both)

  • Standard CPVC 1/2" or 3/4" NPT threaded connections, or optional socketweld

  • NEW! Stainless Steel Accu-Vent with 1/2", 3/4", or 1" connections, for chemical, temperature, and pressure applications

  • NEW! Compact Accu-Vent with 1/4" connection

  • Accu-Vent now certified to NSF/ANSI-61

Optional features:

  • Stainless Steel Accu-Vents are now available, and with 1/2", 3/4" or 1" connections. They are best for applications with specific chemical, temperature, or pressure concerns

  • Stainless Steel Accu-Vents are rated to a maximum temperature of 260℃ (500℉) and a maximum pressure of 250 psig

  • Compact Accu-Vents are available with a 1/4" NPT or BSPT connection

  • Compact Accu-Vents have a temperature rating of 82℃ (180℉) and pressure rating of 150 psig

  • Accu-Vent is also available in PVDF and other materials of construction as requested
